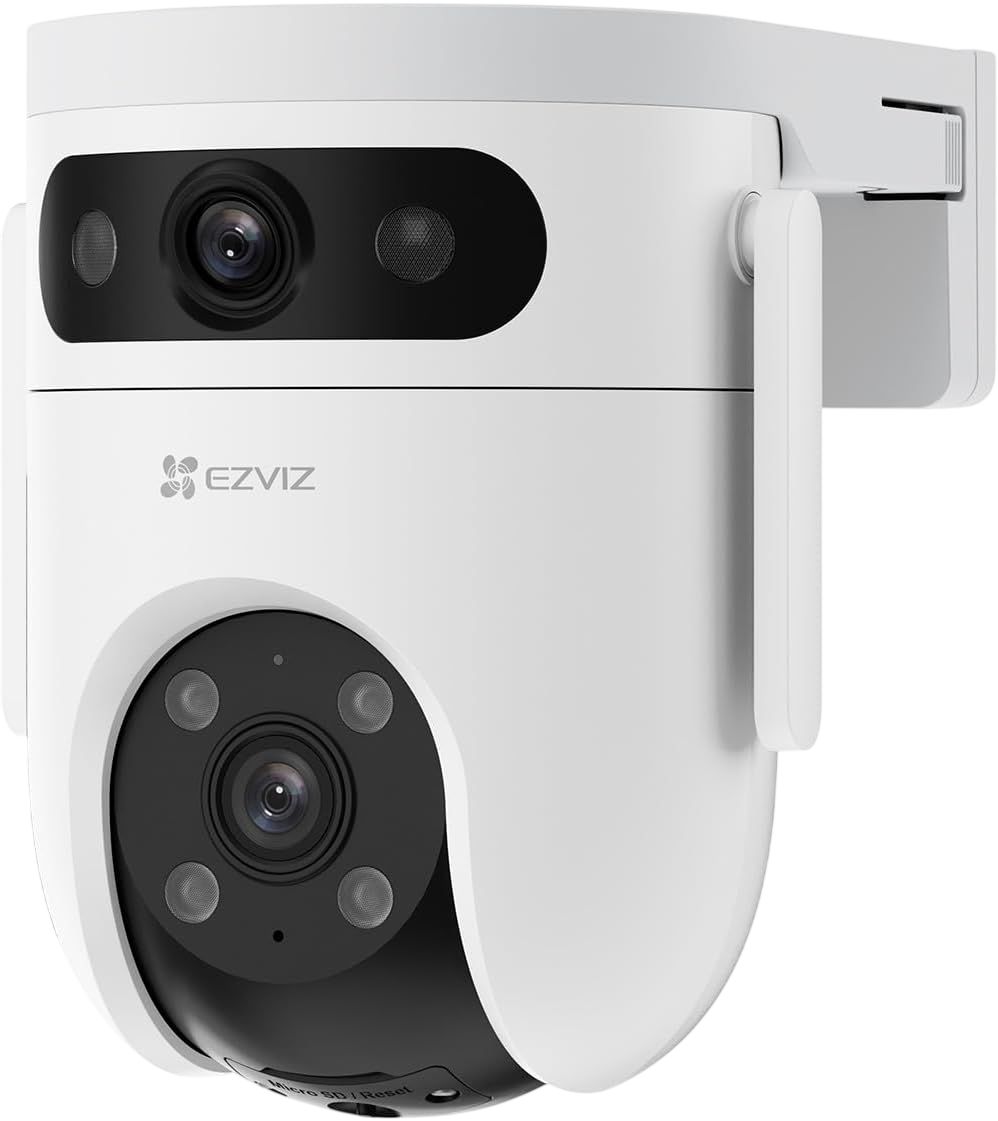

EZVIZ H9c Dual 2K Dual-Lens Wi-Fi Camera
Protect your property with the EZVIZ H9c Dual 2K, an intelligent outdoor security camera designed to monitor a wide area with two coordinated lenses. The fixed upper lens provides a wide-angle view, while the motorized lower lens can pan and tilt to follow activity.
Specifications |
|
|---|---|
| Model | CS-H9c-R100-8H33WKFL |
Camera |
|
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28° |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |
Video & Audio |
|
| Max Resolution | 2304 × 1296 |
| Frame Rate | Max:15fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
Network |
|
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Security | WPA-PSK/WPA2-PSK |
Functions |
|
| Smart Alarm | AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
Storage |
|
| Local Storage | Supports microSD Card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage |
General |
|
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V/1.5A |
| Power Consumption | MAX. 12W |
| Dimensions | 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch) |
| Packaging Dimensions | 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch) |
| Weight | Net Weight: 668 g
With Package: 960 g |
In the box |
|
| In the box | – H9c Camera |
| – Drill Template | |
| – Screw Kit | |
| – Waterproof Kit | |
| – Power Adapter | |
| – Regulatory Information | |
| – Quick Start Guide | |
Certifications |
|
| Certifications | CE / WEEE / RoHS / REACH |
The EZVIZ H9c Dual 2K is suitable for villas, gardens, driveways, entrances, shops and other locations requiring broad coverage and remote security monitoring.
