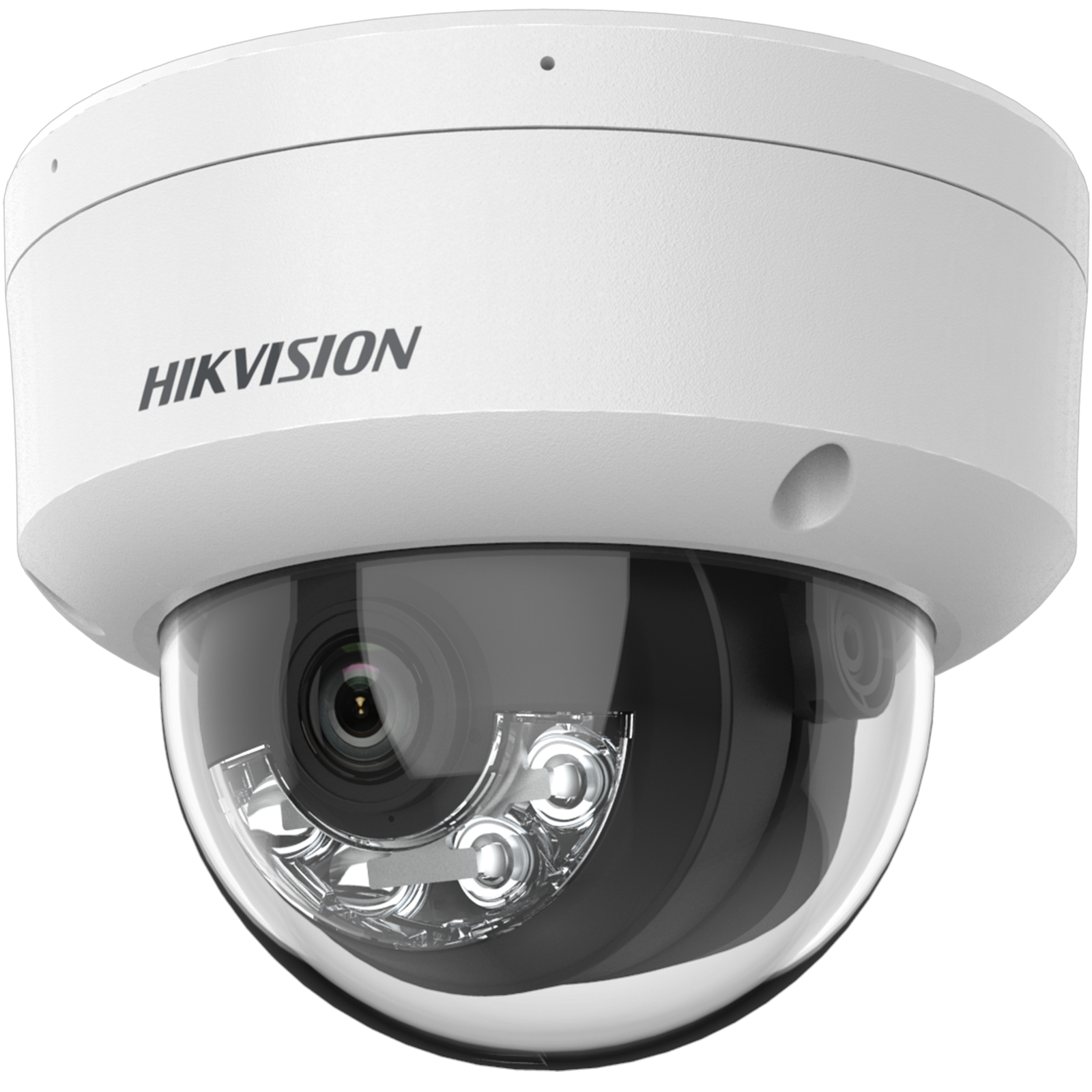

Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Dome Camera
Protect your property with the Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Fixed Dome Network Camera, available for security installations in Abu Dhabi and across the UAE.
Clear 4MP Video
Capture detailed surveillance footage at up to 2560 × 1440 resolution for monitoring entrances, corridors, offices, retail spaces and building perimeters.
Smart Hybrid Light Technology
The camera combines infrared and white-light illumination with a range of up to 30 metres, helping maintain visibility in low-light and nighttime environments.
Intelligent Human and Vehicle Detection
Human and vehicle classification helps distinguish relevant movement from other motion, supporting more useful security alerts.
Built-In Microphone
Capture audio alongside video with the integrated microphone and environmental noise filtering.
Improved Image Quality
120 dB wide dynamic range helps balance bright and dark areas. Additional image processing includes backlight compensation, highlight compensation and 3D digital noise reduction.
Efficient Video Storage
H.265+, H.265, H.264+ and H.264 compression options help reduce bandwidth and storage requirements when used with compatible recording equipment.
Weather and Impact Protection
IP67 protection helps guard against dust and water, while IK08 impact resistance provides added protection against mechanical impacts.
Suitable Applications
- Villas and residential properties
- Shops and supermarkets
- Offices and commercial buildings
- Warehouses and storage facilities
- Building entrances and corridors
- Indoor and outdoor CCTV installations
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 4 MP (2560 × 1440) |
| Minimum Illumination – Color | 0.005 Lux @ F1.6, AGC ON |
| Minimum Illumination – B/W | 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| WDR | 120 dB |
| Pan | 0° to 355° |
| Tilt | 0° to 75° |
| Rotation | 0° to 355° |
| Lens | 2.8 mm / 4 mm fixed focal |
| Horizontal FOV – 2.8 mm | 98° |
| Horizontal FOV – 4 mm | 78° |
| Aperture | F1.6 |
| Smart Hybrid Light | IR + White Light |
| Supplement Light Range | Up to 30 m |
| Frame Rate | 20 fps @ 2560 × 1440 (50/60 Hz) |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Audio | Built-in microphone, real-time mono audio |
| Audio Features | Noise filtering, multiple codec support |
| Motion Detection | Motion Detection 2.0 |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Storage | MicroSD/microSDHC/microSDXC up to 512 GB |
| Memory Card | Supported on -F models |
| Ingress Protection | IP67 |
| Vandal Protection | IK08 |
| Power Supply | 12 VDC |
| DC Power Consumption | Max. 6 W |
| PoE | IEEE 802.3af |
| PoE Power Consumption | Max. 7.5 W |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Dimensions | Ø121.4 × 97.7 mm |
| Weight | Approx. 550 g |
